AVK Resilient Seated Ductile Iron Gate Valve PN16
RM388.00 -
RM5,667.00
- Specifications for AVK Resilient Seated Ductile Iron Gate Valve PN16
Additional information
Material | Ductile Iron |
Standard | BS EN 1074-2 / BS 5163-1 |
Temperature Range | -10°C to +70°C |
Type | SERIES 21 CTO (CLOCKWISE TO OPEN) |
- Description for AVK Resilient Seated Ductile Iron Gate Valve PN16
The AVK Resilient Seated Ductile Iron Wedge Gate Valve / Sluice Valve for Insulation Purposes suitable for use with Water and Neutral Liquids (Sewage) to a Maximum temperature of +70°C.
AVK Ductile Iron Gate Valve PN16 Product Description :-
- Temperature Range : -10°C to +70°C. Solid matter 10%.
- Maximum working pressure of 16 Bar.
- Insulation essential for temperatures of 0°C and below.
- Designed according to BS EN 1074-2 ANNEX B (BS 5163 / TYPE B)
- Standard Flange drilling to EN 1092-2 (ISO 7005-2), PN16
- Hydraulic Test according to EN 1074-1 & 2 / EN 12266
- Materials approved according to WRAS
AVK Ductile Iron Gate Valve PN16 Features :-
- Cap Top are standard
- The Ductile Iron wedge, fully vulcanized with EPDM Rubber
- O-Ring stems seals replaceable under pressure
- Fully corrosion resistant construction
- Blue fusion bonded Epoxy Coating, in accordance with GSK
- Body, Bonet and Gland bolts sealed with Hot Melt
- Lifting Bars
- Patent Pending
- OPTIONALS : PN10 DRILLING / ISO FLANGE GLAND VERSION FOR GEARBOX AND ACTUATOR MOUNTING (21/78)
- OPTIONALS : CLOCKWISE TO CLOSE (WHITE INSERT) / VERSION AVAILABLE FOR SALT LADEN ENVIRONMENTS (21/58)
SAFETY NOTES :-
The valves now accomodate lifting bars for the safe handling of valves. These lifting bars are rated to the weight of the bare valve and stem cap ( where lifted ) only and should not be utilised if the valve is fitted with pipe, mechanical pipe joints, gearboxes, actuators or any other external fitment. AVK Valves will not accept any responsibility for loss or damages if the lifting bars are not used in strict accordance with this guidance.

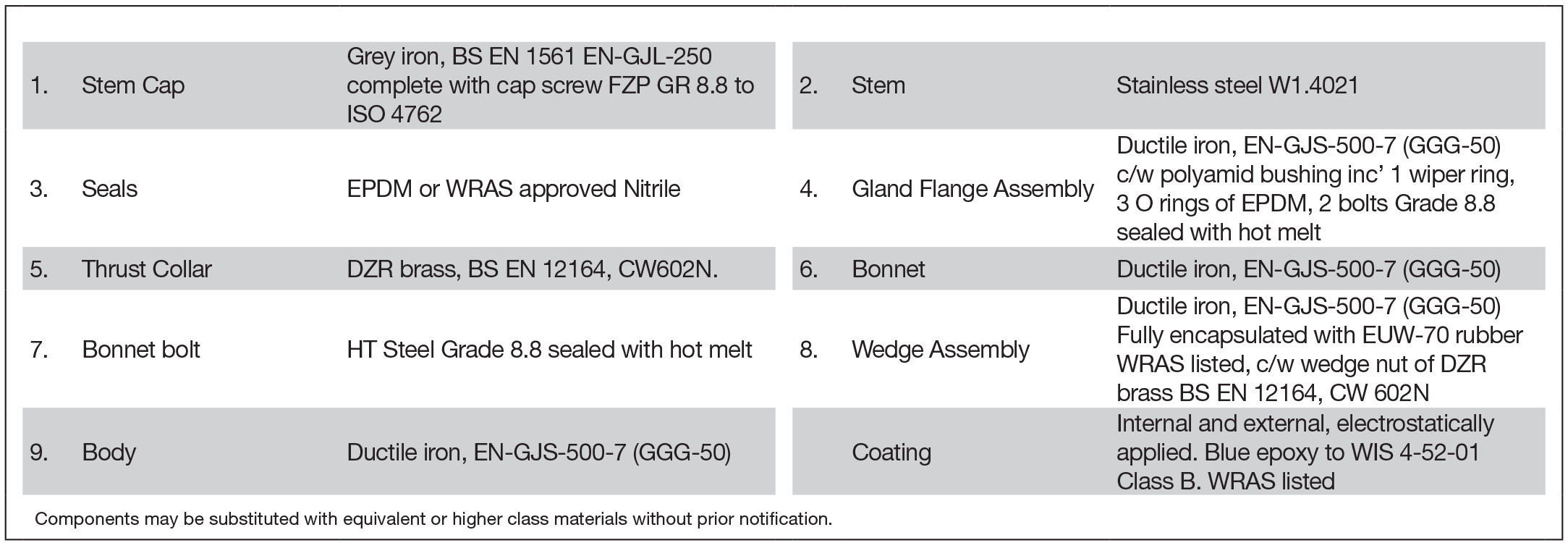

AVK RESILIENT SEATED DUCTILE IRON GATE VALVE PN10/16 COMPONENT LIST :-
AVK RESILIENT SEATED DUCTILE IRON GATE VALVE PN10/16 REFERENCES NOS AND DIMENSIONS :-
